commercial goods transport three wheeler

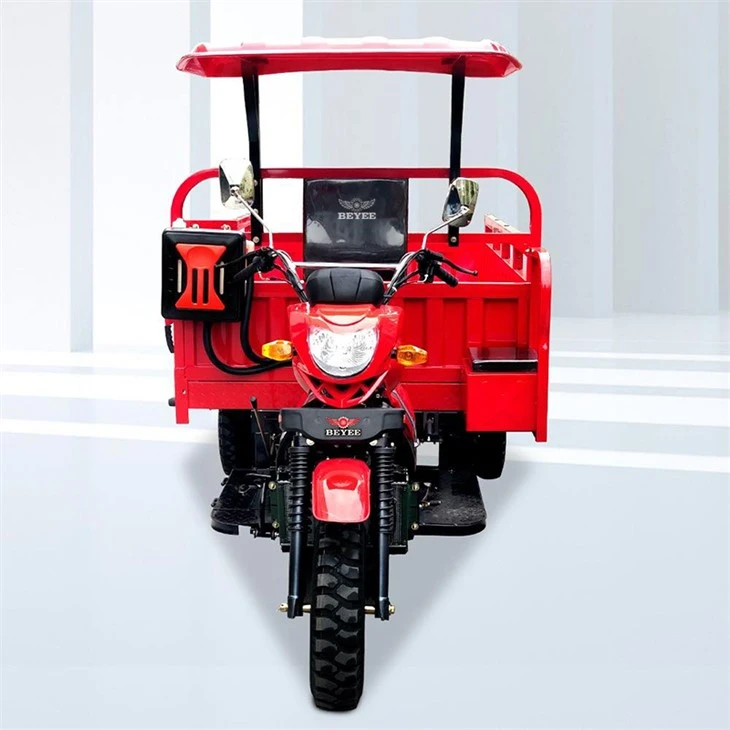

The open-body design offers unobstructed all-around visibility and easy entry and exit, which is highly practical for delivery routes that require frequent stops for loading and unloading. As seen in the front-view image, the vehicle features a large integrated headlight assembly with a crystal-style reflector housing, delivering concentrated long-distance illumination for nighttime driving. Flanked by amber turn signal lights on both sides, the lighting system also improves the vehicle's visibility to other road users, enhancing safety in low-light environments.
The instrument cluster, shown in close-up, adopts a classic dual-dial layout with a digital display in the center. The left dial presents vehicle speed and odometer readings, while the right dial shows engine RPM. The central digital display indicates the current gear position, and additional indicator lights for fuel level, headlight status and turn signals are integrated into the panel. This layout places all critical operating data within the driver's line of sight, allowing quick status checks without diverting attention from the road.
The driver's seat is a thickly padded cushion with an integrated backrest, supporting an upright riding posture to reduce back and waist fatigue during long-distance transport. A red canopy mounted above the driver area provides shade from direct sun and shelter from light rain, extending the vehicle's all-weather working capability. Adjustable rearview mirrors on both handlebars expand rearward visibility and minimize blind spots during reversing and lane changes.
Advantage
At the core of the commercial goods transport three wheeler is a single-cylinder four-stroke gasoline engine available in displacement options from 200cc up to 350cc, paired with a dedicated water cooling system. Unlike air-cooled configurations that are prone to thermal power fade during continuous full-load operation or in high-temperature climates, the closed-loop water cooling circuit maintains the engine within its optimal operating temperature range across extended work shifts. This thermal stability preserves consistent torque output, reduces wear on internal components and extends engine service life, directly lowering long-term maintenance costs for end users. The engine is calibrated for cargo duty, delivering strong low-end torque that enables smooth loaded starts and confident hill climbing even on steep rural gradients. Power is transferred through a multi-speed transmission to an integral 220mm booster drum rear axle. The integrated booster design amplifies output torque at the rear wheels, improving traction and pulling power under heavy load conditions. The rear axle features a fully enclosed structure to protect internal gears from dust and water intrusion, enhancing durability in dusty and muddy working environments. The entire electrical system runs on a 12V architecture, supporting reliable starting and consistent operation of lights and electrical accessories.
Product Specifications
|
Certification |
CCC |
Use For |
Cargo |
|
Driving Type |
Motorized |
Payload Capacity |
≥400kg(≥881.85lb) |
|
Maximum Speed |
50-70Km/h(31.07-43.50mph) |
Power |
801–1,000 W |
|
Grade Ability |
15-20° |
Passengers |
1 |
|
Displacement |
201 - 250cc(6.80-8.45fl.oz) |
Voltage |
12V |
|
Brake System |
Front drum+Rear drum |
Body Type |
Open |
|
Curb Weight |
≥500kg(≥1102.31lb) |
Fuel Tank Capacity |
10-20 L(2.64-5.28gal) |
|
Type |
Right three-wheeled motorcycle |
Place of Origin |
Chongqing, China |
|
Tire Size |
5.5-12 |
Brand |
BEYEE |
|
Size |
Standard Size |
Product name |
Three Wheel Tricycle |
|
Brand |
BEYEE |
Engine |
175cc, 200cc,water-cooling |
|
Cargo box size |
2.2*1.45*0.56m |
Front Shock Absorber |
09 type spring |
|
Front/Rear Tire |
5.5-12 |
Wheels Type |
Five |
|
Rear Axle |
Intergral booster drum220 |
Rear Brake |
Hydraulic |
|
Chassis |
50*100 |
||
